High Power Draw Bar Box 6 Channels 540W 2G.3G.4GMobile Signal Jammer With WIFIJammer(professional)
High Power Draw Bar Box 6 Channels 540W 2G.3G.4GMobile Signal Jammer With GPSL1 Jammer(professional)Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...
Output Channel: 6 output channels
Parameter Shielding Range: Radius 200-500 meters(-75dBm,depending on the distance of base station in an open filed)
Transmission Power: Integrated Equipment≥540W,each channel≥80W
Features
*Ultra-wideband jamming coverage; continuously jamming wireless signals 20M~6000MHz
*Draw-bar box designed for portability and easy moving;
*Built-in rechargeable battery can be used for 90 minutes after
being fully charged;

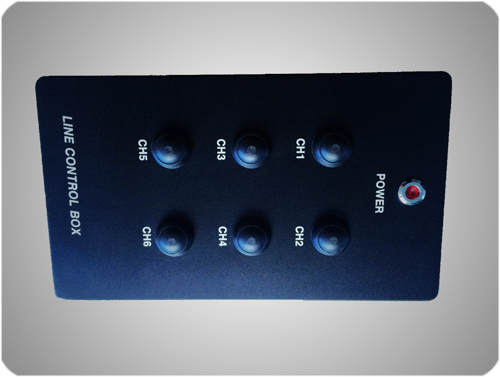

*Manual switch and remote control;
*Each channel module can start or close individually;
*Efficient frequency division ensures the best interference effect on signals of different frequencies;
*Efficient power distribution minimizes power loss and improves efficiency; the power can be regulated as needed ( optional gear regulation);
*Military standard casing, which is anti-throw, pressure-resistant and
durable;
*AC110-220V/Built-in battery supply (DC27V)
*Built-in efficient cooling fan and cooling fin ensures the product work
stably in a long service life;

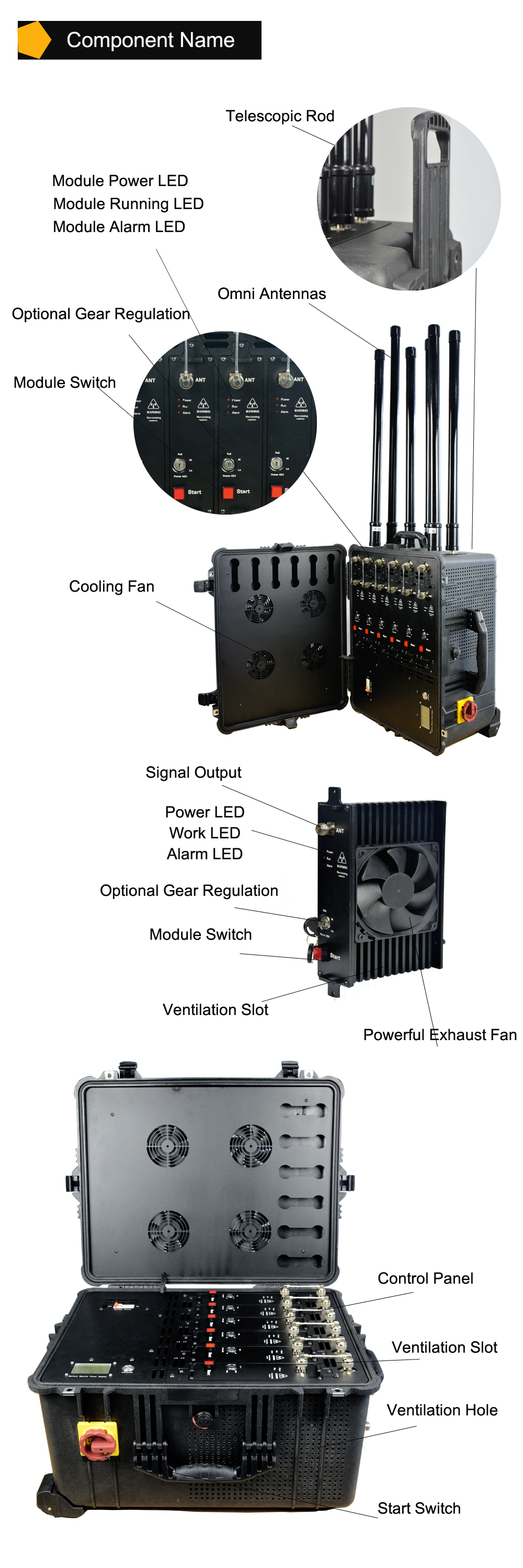

Main Parts
Component Dimensions
| Name | L | W | H | Remarks |
| Host | 650 | 509 | 357 | Protrusions excluded |
| Antenna | 760 Φ35 |
Other Parameters
| Total Weight | 85kg,Aviation Case included |
| Net Weight | 49kg |
| Ambient Temperature | -10℃~+50℃ |
| Relative Humidity | ≤80% |
| Power Consumption | ≤360W |
| Power Input | AC100~240V,DC24V |
| Battery | 27V,40AH,Built-in standby battery can used for 90~120 minutes |
| Antenna Parameters | Omni antennas,gain:4~5dBi |
| Switch Control | Manually |
| Equipment Chassis | Metallic Paint |
Product Applications
Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,
hostage negotiations,border control,etc...
Product details
Warranty: one year from delivery date
For more details,please do not hesitate to send us an enquiry.
|
|
High Power Draw Bar Box 6 Channels 540W 2G.3G.4G Mobile Signal Jammer With WIFI Jammer（professional） Images
|
