Multifunctional 12 antennas jammer shielding all 2G 3G 4G 5G WIFI GPS LOJACK signals with 70 meters blocking distance
JYT-1200 is a 12-antenna multi-functional all in one signal jammer with 12 channels and 1-3W output power per channel,which brings us powerful interference capabilities. It can cut off not only all 2G 3G 4G 5G mobile phone signals, but also interfere with GPSL1 WIFI LOJACK signals,This cell phone jammer meets your blocking needs for the most common affected frequency types.
Jamming frequencies:
JYT-1200A
1.CDMA:850-894MHz 3W
2.GSM:925-960MHz 3W
3.DCS/PCS: 1805-1990MHz 3W
4.3G :2110-2170MHz 1W
5.4GLTE:738-821MHz 3W
6.4GWimax: 2620-2690MHz 1W
7.5.8GWIFI :5600-5900 Mhz 1W
8.5.2G WIFI :5100-5600MHz 1W
9.WIFI:2400-2500MHz 1W
10.5G1:3300-3600MHz 3W
11.5G2:3600-3800MHz 3W
12.GPSL1:1570-1580MHz 3W
JYT-1200B
1.CDMA/GSM:850-960MHz 3W
2.DCS/PCS: 1805-1990MHz 3W
3.3G :2110-2170MHz 1W
4.4GLTE:738-821MHz 3W
5.4GWimax: 2620-2690MHz 1W
6.5.8GWIFI :5600-5900 Mhz 1W
7.5.2G WIFI :5100-5600MHz 1W
8.WIFI:2400-2500MHz 1W
9.5G1:3300-3600MHz 3W
10.5G2:3600-3800MHz 3W
11.GPSL1:1570-1580MHz 3W
12.Lojack 165-174MHz 3W
We can also customize the frequencies according to different requirements,Please feel free to contact us anytime!
Feature :
1.12 chancel design with 12 jamming frequencie ranges.
2.High output power ,1-3W per band, Total 26W.
3.jamming range up to 70 meters (Depends on the signal strength in a given area).
4.stronger and longer External Omni-directional antennas (All the TX frequency covered down link only.)
5.Equipped with a car battery charger DC12V that can be used in the car.
6.Built-in good cooling system with 5 cooling fans , Working non-stopped.
7.Support the adjust or turn off of any single band without influencing the other bands's operation.
8.With remote control, can be switched remotely.
9.Low noise.
10.This product is great for school classes to avoid cheating on exams and for oil/gas stations to stay safe.
Parameters:
Total output power: 26W
Full set weight: 6.0kg
Power supply: AC 110V/220V and 12V cable to car battery
Dimension: 330mm x 238mm x 60mm
Shielding radius:40-70meters @-75DBM (depends on the signal strength in the given area)
Working Time:Work non-stopped, Can work 24 hours * 7 days * 12 month.
Application area:
1.It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more
2.For some special-purpose places, such as hospitals, gas stations, etc., please conduct on-site testing first to ensure that the normal operation of their equipment and instruments will not be interfered with.
Warranty: one year from delivery date.
Accessories:
Host x 1pc

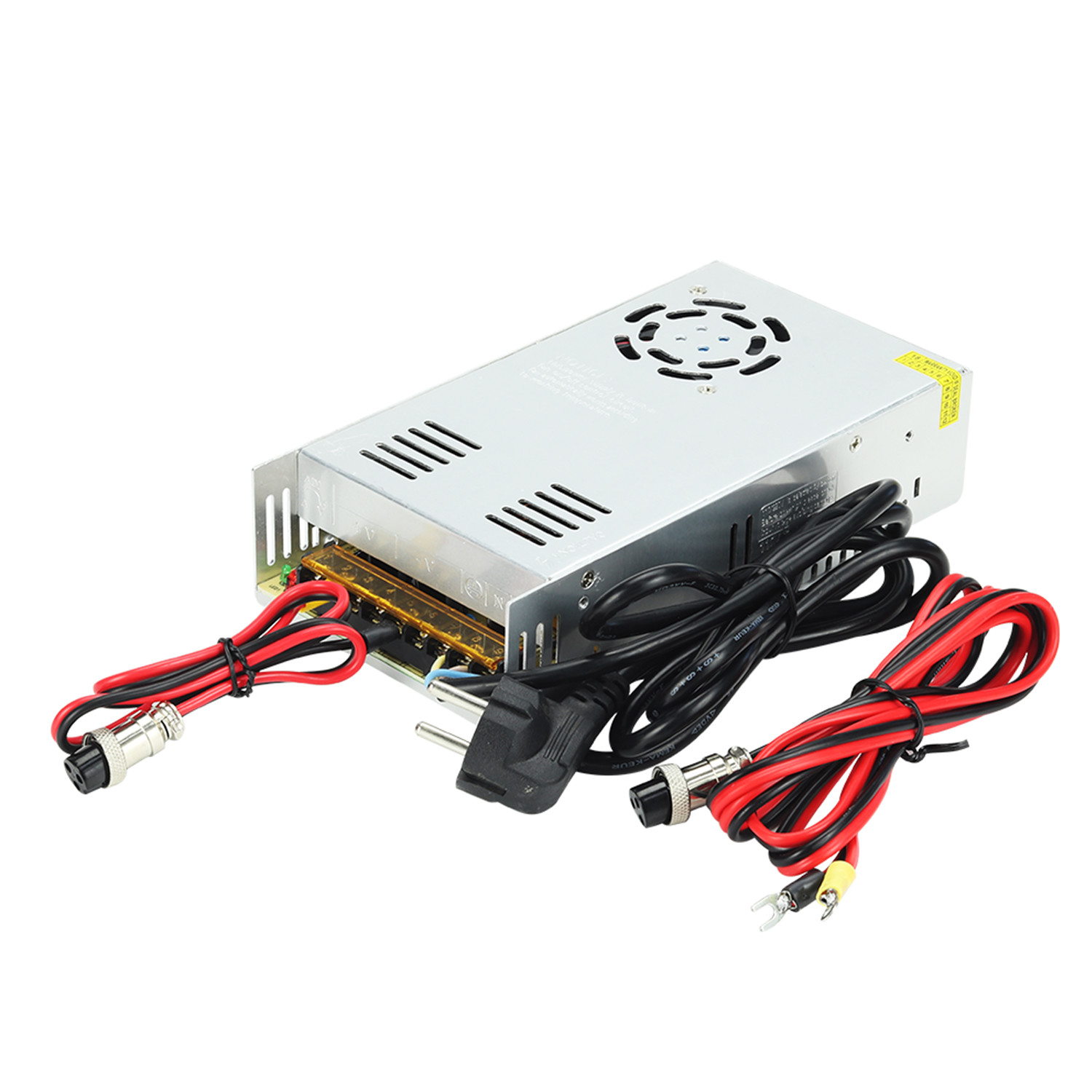

AC Adapter x 1pc
Omni-antenna x 12pcs
Car adapter x1pc
For more details,please do not hesitate to send us an enquiry.
|
|

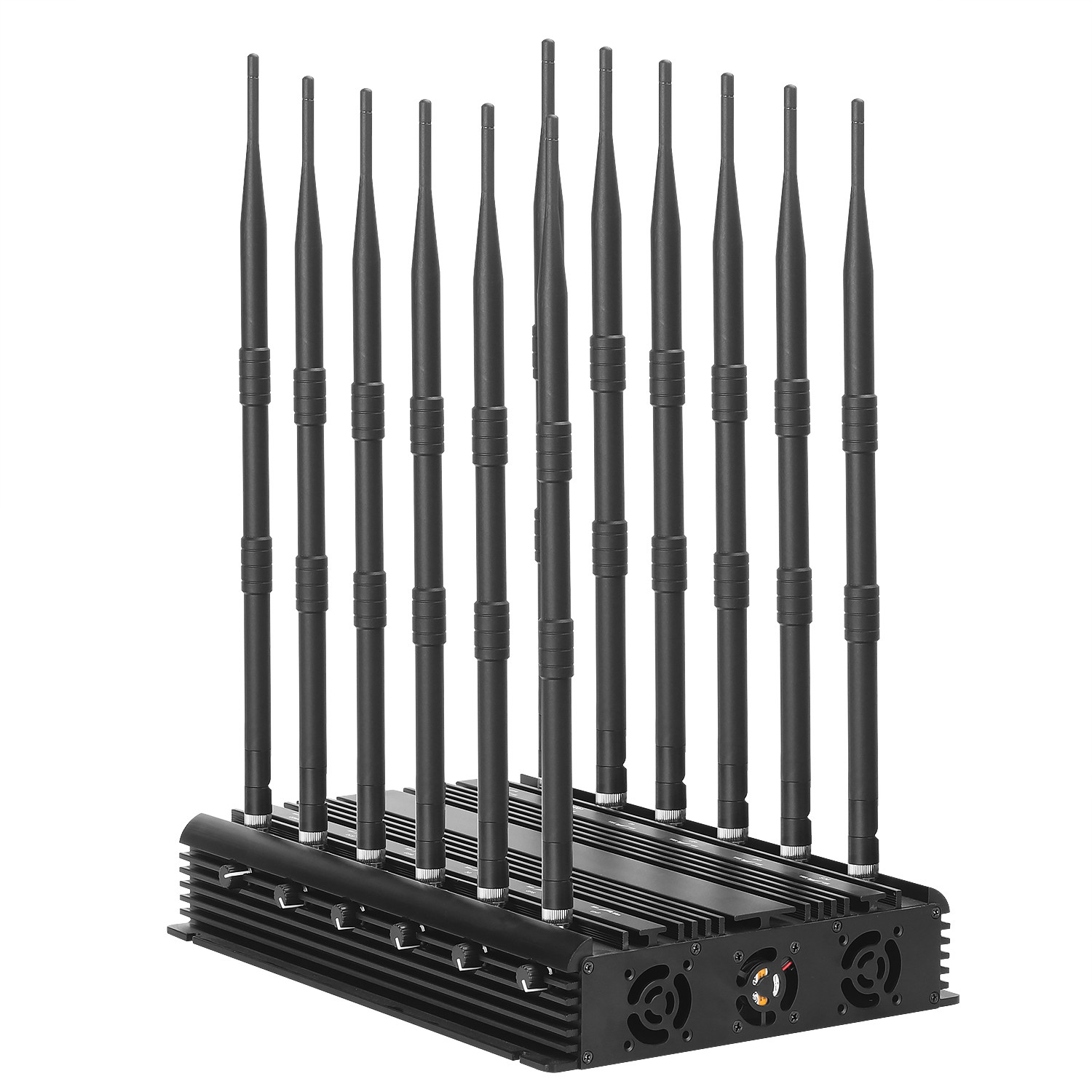

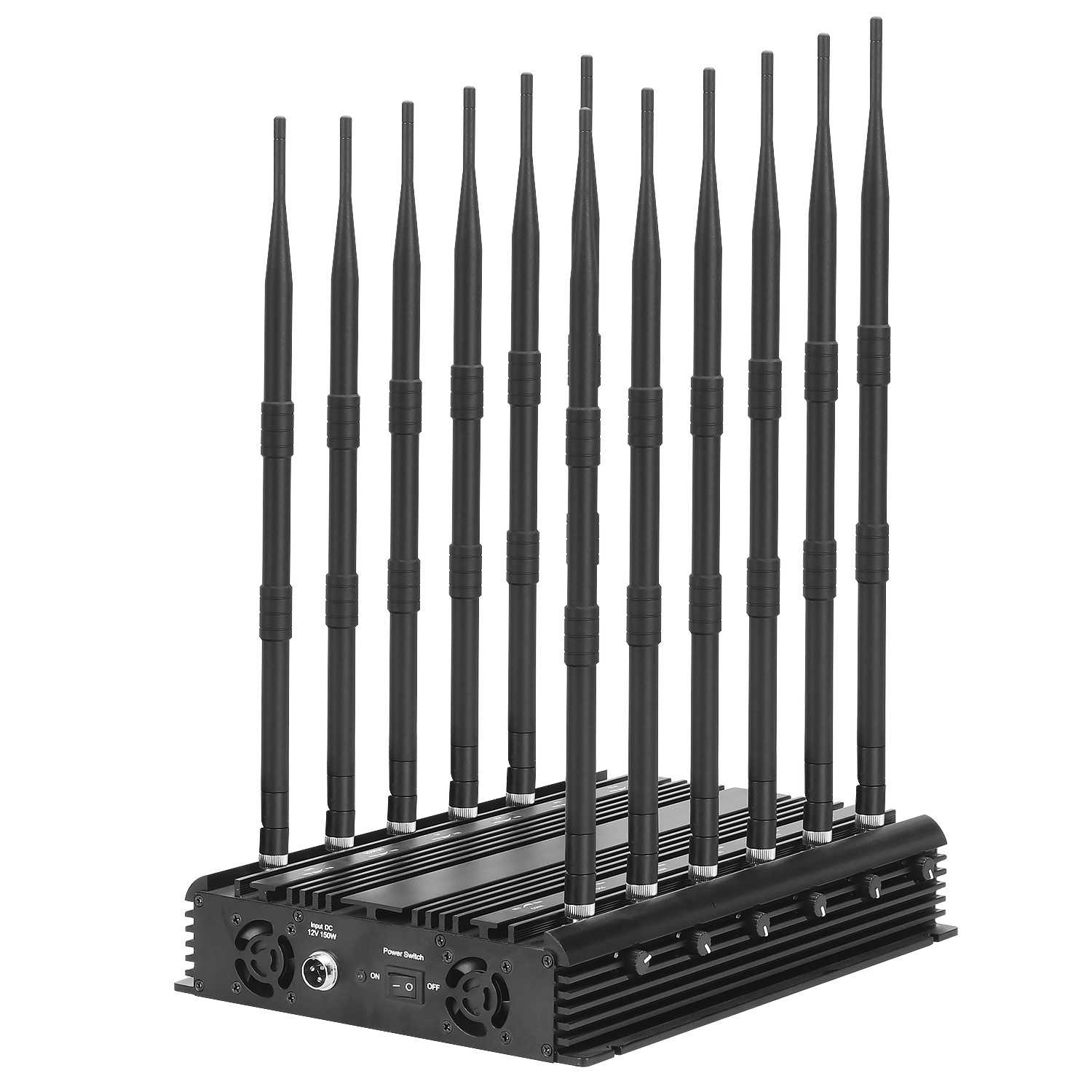

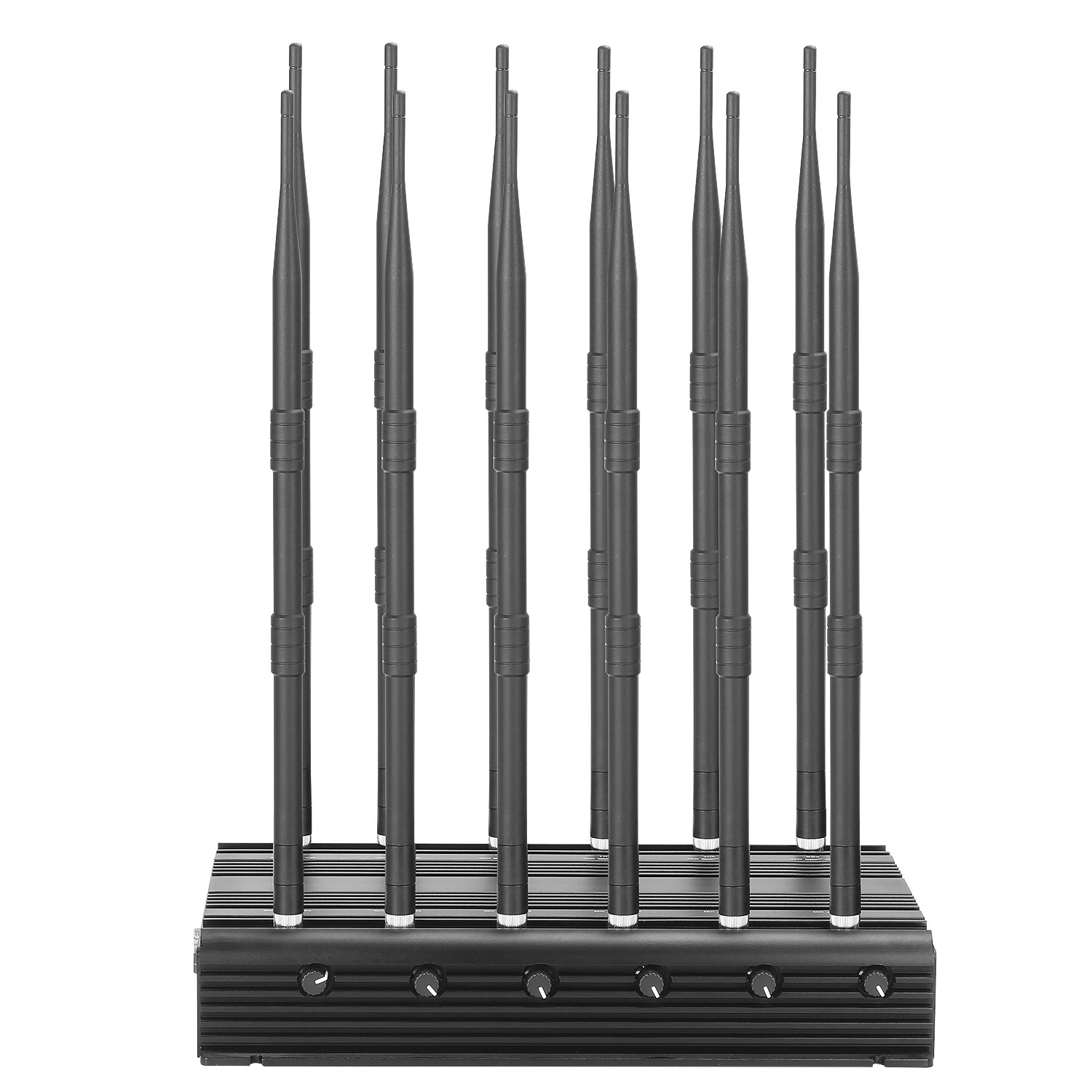

Multifunctional 12 antennas jammer shielding all 2G 3G 4G 5G WIFI GPSL1 LOJACK signals with 70 meters blocking distance Images
|
