16 Antennas 2G 3G 4G 5G ,WIFI Lojack GPS L1, RF (315/433/868) desktop jammer
JYT-1600 is a 16-antenna multi-functional integrated signal jammer, which brings us powerful interference capabilities. It can not only cut off all 2G 3G 4G 5G mobile phone signals, but also interfere with WIFI Lojack GPS L1 and RF (315/433/868) signals with an interference radius of 40-70 meters.
Feature :
1.16 chancel design,1-3W per band.
2.High output power, Total up to: 38W, jamming up to 70m (Depends on the signal strength in a given area)
3.Stronger and longer External Omni-directional antennas,all the TX frequency covered down link only .
4.Equipped with car battery charger DC12V can be used in the car
5.Built-in good cooling system inside, Working non-stopped
6.Support the adjust or turn off of any single band without influencing the other bands's operation.
Jamming frequencies:
1.CDMA/GSM :850-894MHz 3W
2.GSM:925-960MHz 3W
3.DCS/PCS: 1805-1990MHz 3W
4.3G :2110-2170MHz 1W
5.4GLTE:738-821MHz 3W
6.4GWimax: 2620-2690MHz 1W
7.5.8GWIFI :5600-5900 Mhz 1W
8.5.2G WIFI :5100-5600MHz 1W
9.WIFI:2400-2500MHz 1W
10.5G1:3300-3600MHz 3W
11.5G2:3600-3800MHz 3W
12.GPSL1:1570-1580MHz 3W
13.RF315 :315MHz 3W 14:RF433:433MHz 3W
15:RF868:868MHz 3W
16:Lojack:165-174MHz 3W
We can also customize the frequencies according to different requirements,Please feel free to contact us anytime!
parameters:
Power supply:AC 100 to 240V DC 12V IN.
Dimensions:395x 238x 60 mm(not Include Antenna)
Total power:38W
Shielding radius:40-70meters @-75DBM (Depends on the signal strength in a given area)
Warranty: One year from delivery date
Working Time:Work non-stopped, Can work 24 hours * 7 days * 12 month
Weight:7KG
Package Content:
Jammer Host x 1pc
AC Charger x 1pc
Omni-antenna x 16pcs
Car storage battery cable x1pcs
Applications:
1.It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more;
2.For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
For more details,please do not hesitate to send us an enquiry.
|
|

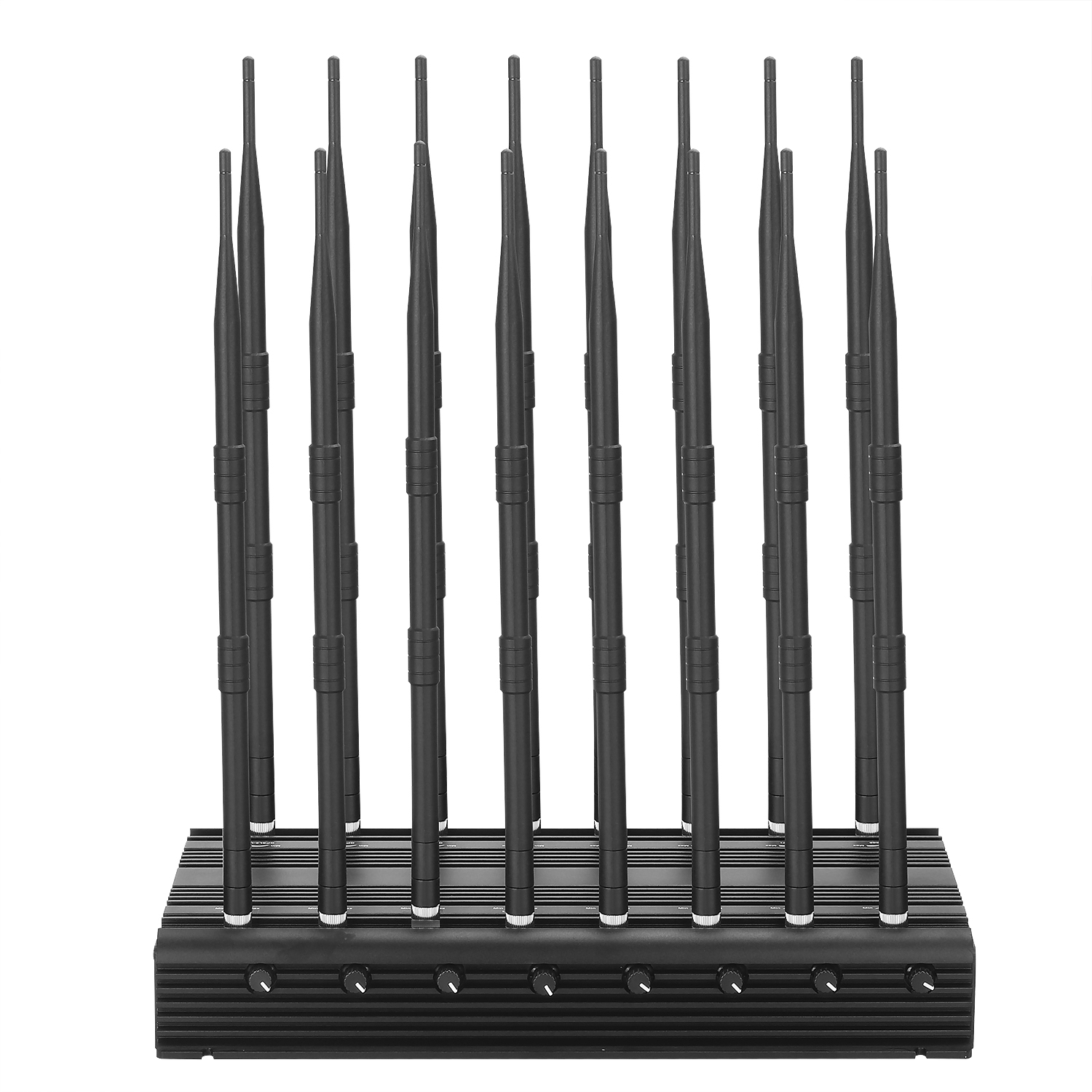

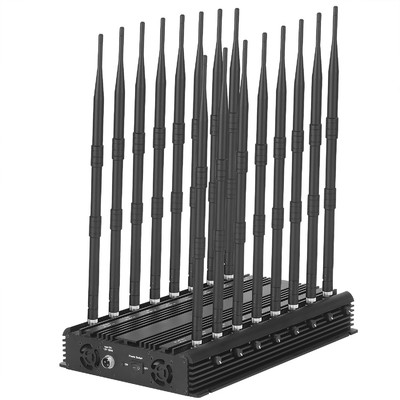

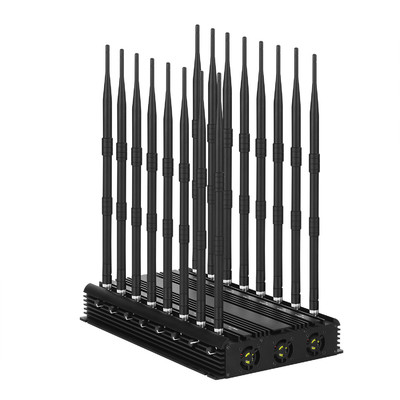

16 Antennas 2G 3G 4G 5G WIFI Lojack GPSL1 RF(315/433/868) Desktop Jammer Images
|
