2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector

Name: 24G 4G 150W 23002500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector
Brand: OEM/ODM
Price: 1 USD

Quality 2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector wholesale

Brand Name : OEM/ODM

Model Number : JYT-G2.4-150

Certification : CE

Place of Origin : China

MOQ : 1Pc

Price : Negotiate

Payment Terms : T/T

Delivery Time : 1-3 working days after payment received

Packaging Details : Neutral Package

Contact Now

^{Product Parameters}

2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector

Main Components :

1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage

4, Tube Voltage 5, Adjustable GAN Voltage 6, GAN Voltage

1.RF Data

Item		Spec.		Remarks
Frequency Range(MHz)		2300-2500		Bandwidth Range±10MHz
Working Voltage		28V		24-30V
Analog sweeping speed		150KHz
Output Power (Max)		≥52dBm(150W)		100W
Gain (Max)		50±1 dB
Ripple in Band		≤ 5dB		Peak
Bandwidth adjustment		Yes		By screw
Center adjustment		Yes		By screw
Enable control		Yes		0V-OFF/5V-ON
Output VSWR		≤3
Working current@+28V dc		≤14A
High Low Temperature test	Working Temperature	-20~＋65℃		Working properly
	Gain Stability	±1 dB		at -20℃~+55℃
	Power stability	±1 dB		at -20℃~+55℃
Power supply Port		Port 7W2	A1:GND	24-28V; GND
			A2:+28V	24-28V; GND
			PIN3:Enable control,0V-OFF/5V-ON
			PIN1,2,4,5 NC
RF output connector		SMA-Female
LED indicator light		Power ON/OFF
Dimension		20010025 mm
Installation Dimension		969692*25 mm
Screw Size		6-Ø3.20 mm
Weight		900g

2.Size

2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector

For more details,Please don't hesitate to send us your inquiry.

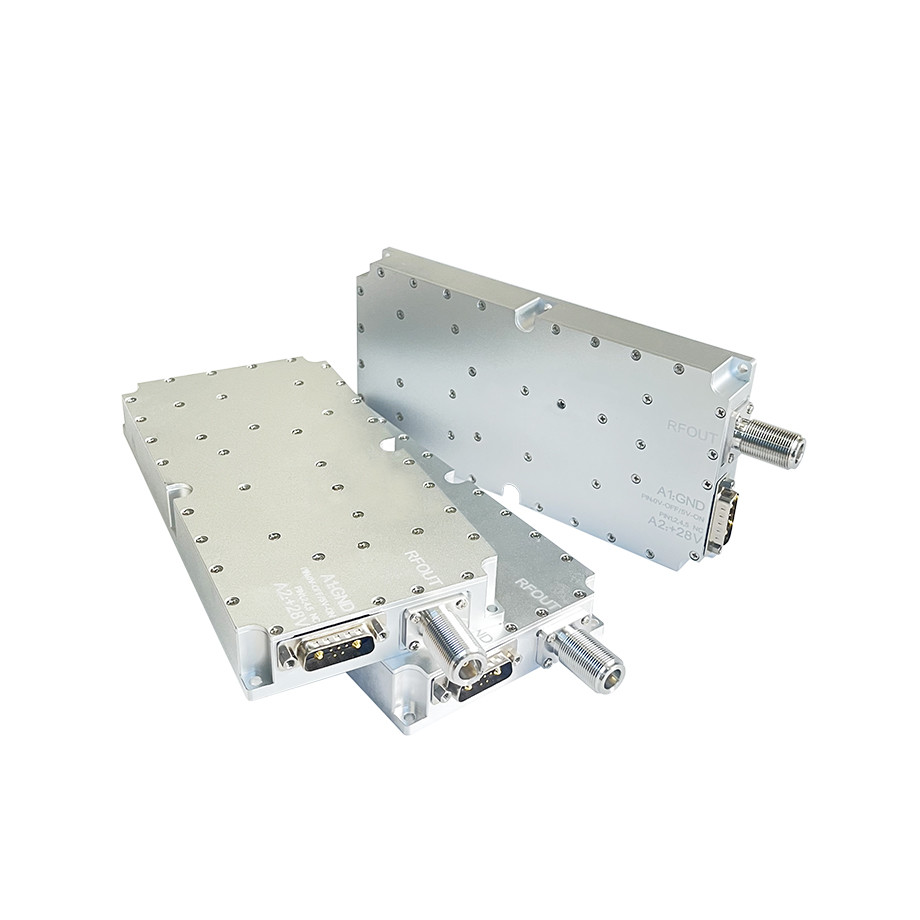

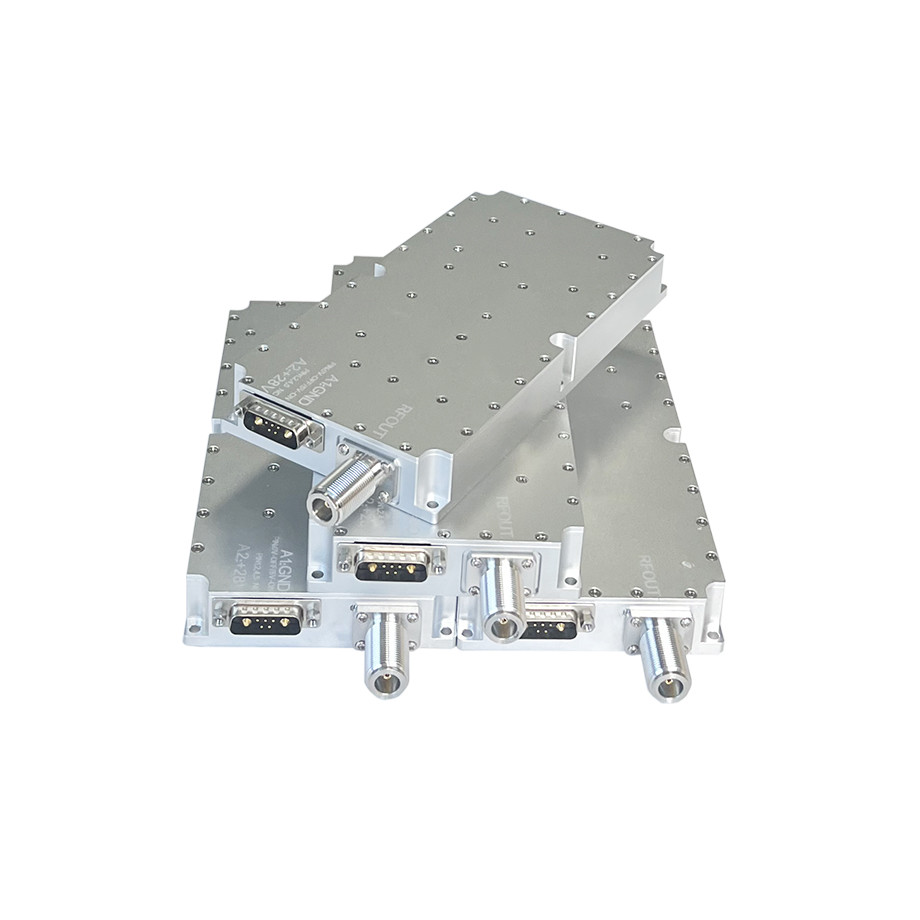

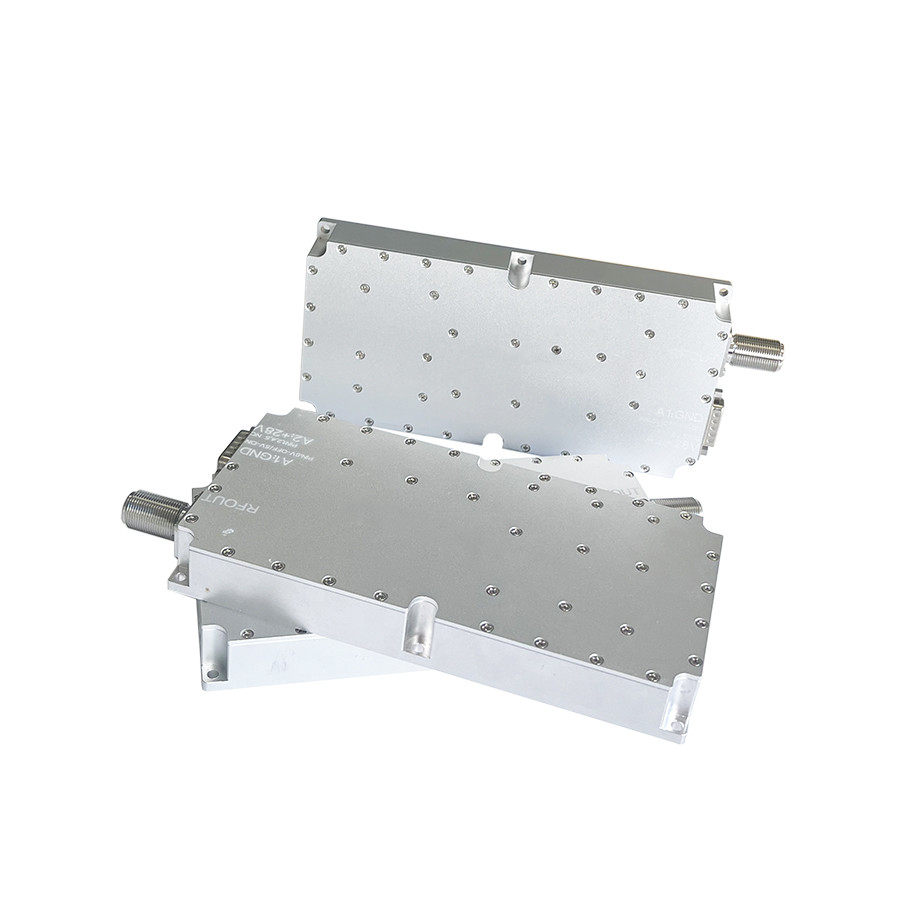

2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector Images
