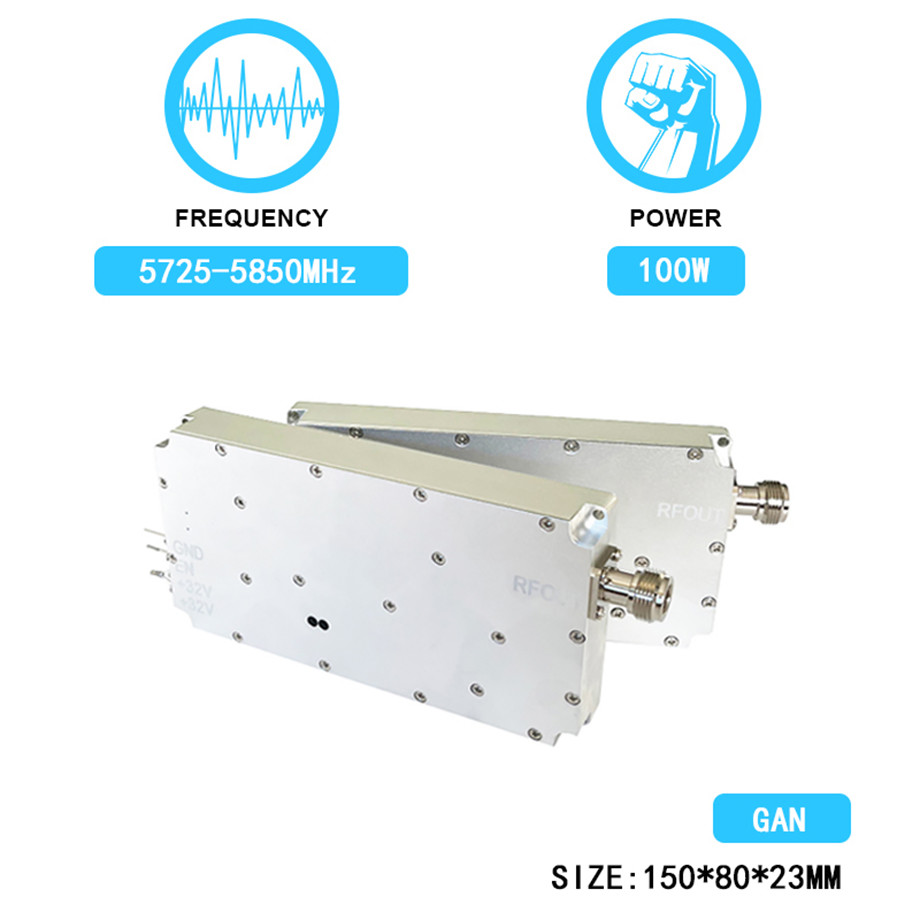

Anti Drone Module 100W 5.8g Jammer Interceptor Blocking Antidrone Jamming Module With GAN And Isolation Protector

Product Categories
JinYaTong Technology(china) Co., Ltd
Contact Now

Anti Drone Module 100W 5.8g Jammer Interceptor Blocking Antidrone Jamming Module With GAN And Isolation Protector

Brand Name : OEM/ODM

Model Number : JYT-G5.8-100

Certification : CE

Place of Origin : China

MOQ : 1Pc

Price : Negotiate

Payment Terms : T/T

Delivery Time : 1-3 working days after payment received

Packaging Details : Neutral Package

Contact Now

Product Parameters

Anti Drone Module 100W 5.8g Jammer Interceptor Blocking Antidrone Jamming Module With GAN And Isolation Protector

Main Components :

1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage

4, Tube Voltage 5, Adjustable GAN Voltage 6, GAN Voltage

1.RF Data

Item Spec. Remarks
Frequency Range(MHz) 5725-5850 Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Analog sweeping speed 250KHz
Output Power (Max) ≥47dBm 100W
Gain (Max) 47±1 dB
Ripple in Band ≤ 3 dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Yes 24-28V
Output VSWR ≤1.5
Working current@+28V dc ≤9A

High Low Temperature test

 Working Temperature -20~＋65℃ Working properly
Gain Stability ±1 dB at -20℃~+55℃
Power stability ±1 dB at -20℃~+55℃
Power supply Port Positive and negative lines 24-28V; GND
Center adjustment N-Female
LED indicator light Power ON/OFF
Dimension 150*80*23 mm
Screw Size 4-Ø3.20 mm
Weight 590g

2.Size

Anti Drone Module 100W 5.8g Jammer Interceptor Blocking Antidrone Jamming Module With GAN And Isolation Protector

Detailed Photos

Anti Drone Module 100W 5.8g Jammer Interceptor Blocking Antidrone Jamming Module With GAN And Isolation ProtectorAnti Drone Module 100W 5.8g Jammer Interceptor Blocking Antidrone Jamming Module With GAN And Isolation ProtectorAnti Drone Module 100W 5.8g Jammer Interceptor Blocking Antidrone Jamming Module With GAN And Isolation ProtectorAnti Drone Module 100W 5.8g Jammer Interceptor Blocking Antidrone Jamming Module With GAN And Isolation Protector

Spectrum data


Anti Drone Module 100W 5.8g Jammer Interceptor Blocking Antidrone Jamming Module With GAN And Isolation Protector
Anti Drone Module 100W 5.8g Jammer Interceptor Blocking Antidrone Jamming Module With GAN And Isolation Protector
Anti Drone Module 100W 5.8g Jammer Interceptor Blocking Antidrone Jamming Module With GAN And Isolation Protector
Anti Drone Module 100W 5.8g Jammer Interceptor Blocking Antidrone Jamming Module With GAN And Isolation Protector
