2.4G 4G 50W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv with Isolation Protector

JinYaTong Technology(china) Co., Ltd
Contact Now

2.4G 4G 50W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv with Isolation Protector

Brand Name : OEM/ODM

Model Number : JYT-G2.4-50

Certification : CE

Place of Origin : China

MOQ : 1Pc

Price : Negotiate

Payment Terms : T/T

Delivery Time : 1-3 working days after payment received

Packaging Details : Neutral Package

Contact Now

Product Description

Product Parameters


2.4G 4G 50W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv with Isolation Protector

Main Components :

1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage

4, Tube Voltage 5, Adjustable GAN Voltage 6, GAN Voltage 7, Isolation Protector

1.RF Data

Item Spec. Remarks
Frequency Range(MHz) 2300-2500 Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Analog sweeping speed 250KHz
Output Power (Max) ≥47dBm 50W
Gain (Max) 47±1 dB
Ripple in Band ≤ 3 dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Yes 24-28V
Output VSWR ≤1.5
Working current@+28V dc ≤4.5A
High LowTemperature test Working Temperature -20~+65℃ Working properly
Gain Stability ±1 dB at -20℃~+55℃
Power stability ±1 dB at -20℃~+55℃
Power supply Port Positive and negative lines 24-28V; GND
Center adjustment SMA-Female
LED indicator light Power ON/OFF
Dimension 117*40*18 mm
Screw Size 4-Ø3.20 mm
Weight 180g

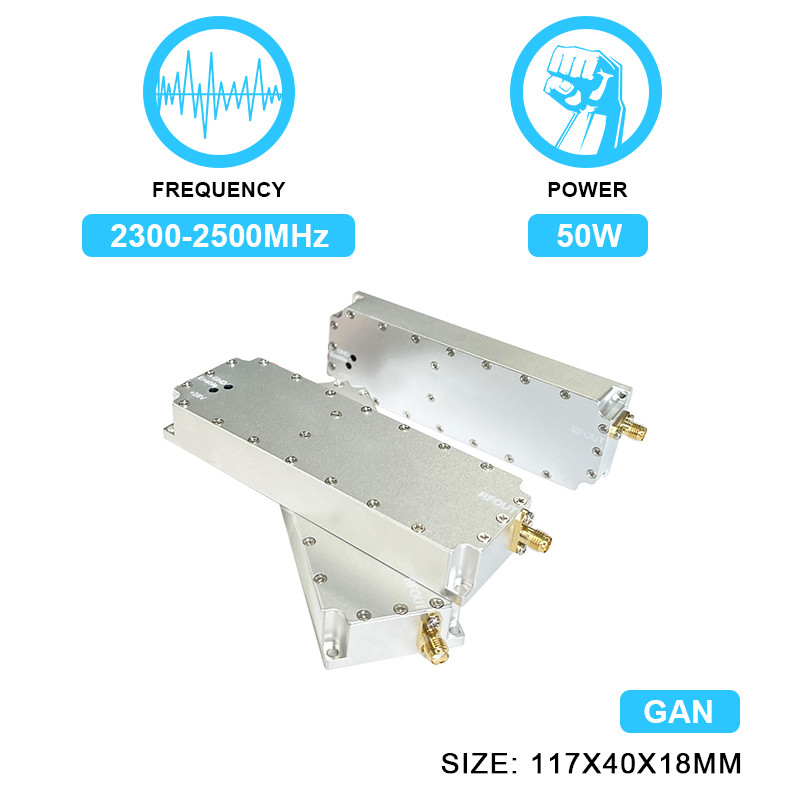

2.Size

2.4G 4G 50W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv with Isolation Protector

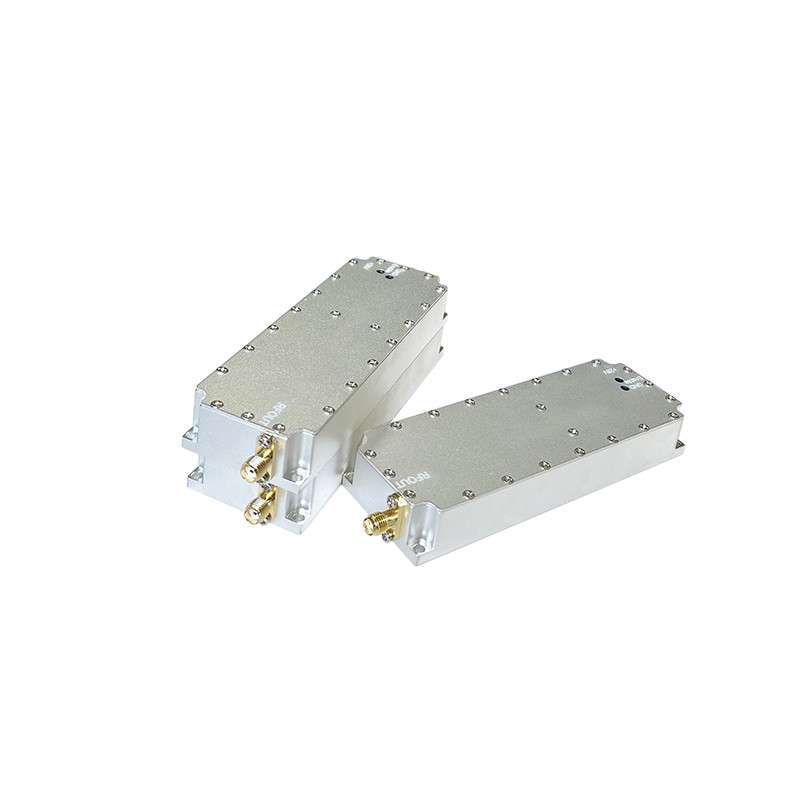

Detailed Photos


2.4G 4G 50W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv with Isolation Protector2.4G 4G 50W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv with Isolation Protector2.4G 4G 50W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv with Isolation Protector2.4G 4G 50W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv with Isolation Protector2.4G 4G 50W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv with Isolation Protector

Spectrum data


2.4G 4G 50W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv with Isolation Protector
2.4G 4G 50W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv with Isolation Protector
2.4G 4G 50W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv with Isolation Protector
2.4G 4G 50W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv with Isolation Protector
